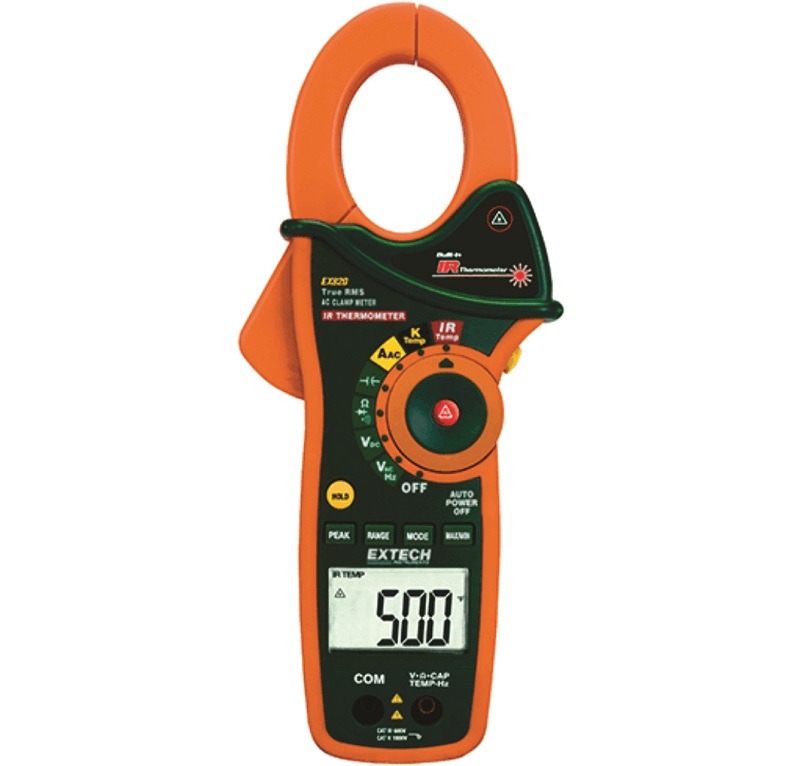

EX820: 1000A True RMS AC Clamp Meter with IR Thermometer

Brand :

Extech

~~₦82,000.00~~ ₦73,000.00

-11%

Features:

Non-contact InfraRed Temperature measurements with laser pointer
True RMS Current and Voltage measurements
Peak hold captures inrush currents and Transients
MultiMeter functions include AC/DC Voltage, AC Current, Resistance, Capacitance, Frequency, Diode, Continuity and Type K Thermometer
1.7″ (43mm) jaw opening for conductors up to 750MCM or two 500MCM
4000 count backlit display
Autoranging with manual range button
Features include Data Hold and Min/Max, Auto Power off
Complete with test leads, 9V battery, general purpose Type K probe and case.

DOWNLOAD PRODUCT INFORMATION

DOWNLOAD USER MANUAL

CE DECLARATION OF CONFORMITY

240 in stock (can be backordered)

SKU: EX820 Categories: Clamp Meters, Clamp Meters, Electrical/Mechanical, Maintenance Tools, Thermometers Tags: AC Clamp Meters, Infrared Thermometers

Description
Reviews (0)

AC Clamp-on multimeter with built-in non-contact InfraRed Thermometer

The EX820 True RMS clamp meter features a built-in IR thermometer with laser pointer for non-contact surface measurements from -58 to 518 degrees Fahrenheit (-50 to 270 degrees Celsius). Clamp measures AC current up to 1000 Amp with a maximum resolution of 0.1 Amp. The 1.7 in. jaw fits around conductors up to 750MCM. Peak hold captures motor inrush currents and other surges. Data hold and auto power off. Other functions include AC/DC voltage, resistance, Type K thermometer, capacitance and frequency. Complete with test leads, Type K temperature probe, 9 Volt battery and case.
